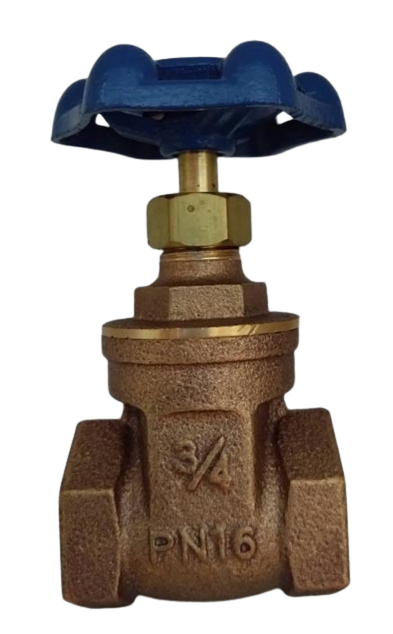

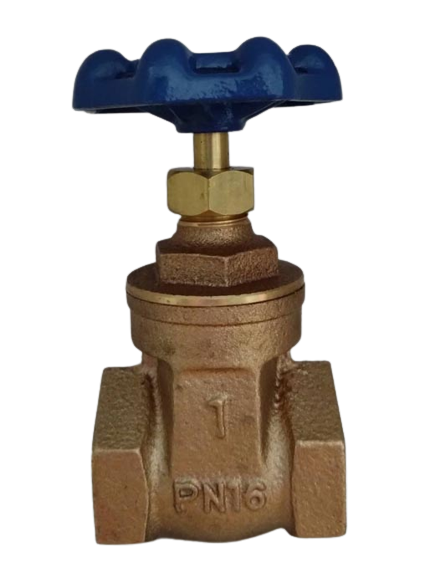

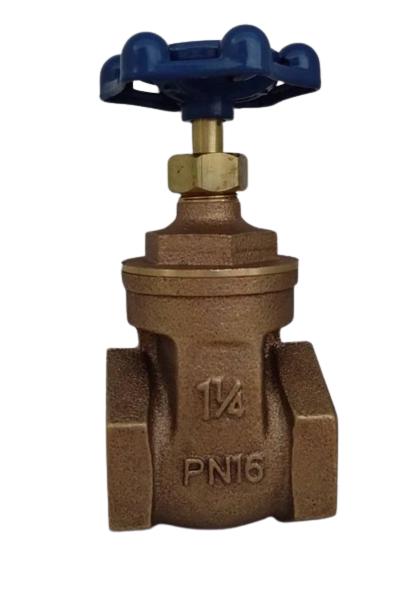

Model：TYT-312
Bronze
IPS Gate Valve
1/2”~ 4”
Add to inquiry
Specification
 SIZE  ØD H L  Ød
1/2" PT  1/2 73.0 43.5 13.5
3/4" PT  3/4 84.0 48.5 19.5
1" PT    1 95.0 54.5 24.5
11/4" PT 11/4 108.0 59.0 31.5
11/2" PT 11/2 123.0 62.0 36.5
2" PT    2 142.0 70.0 46.5
21/2" PT 21/2 178.0 88.0 61.0
3" PT    3 207.0 97.5 74.0
4" PT    4 248.0 117.5 94.5







PART MATERIAL
BODY CAST BRONZE
DISC CAST BRONZE
BONNET CAST BRONZE
HAND WHEEL ALUMINUM ALLOY
STEM BRASS ROD

Products Inquiry

Related Products

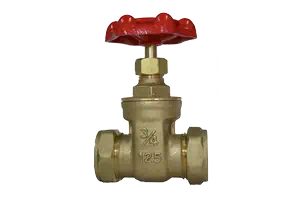

Brass Cxc Gate Valve
