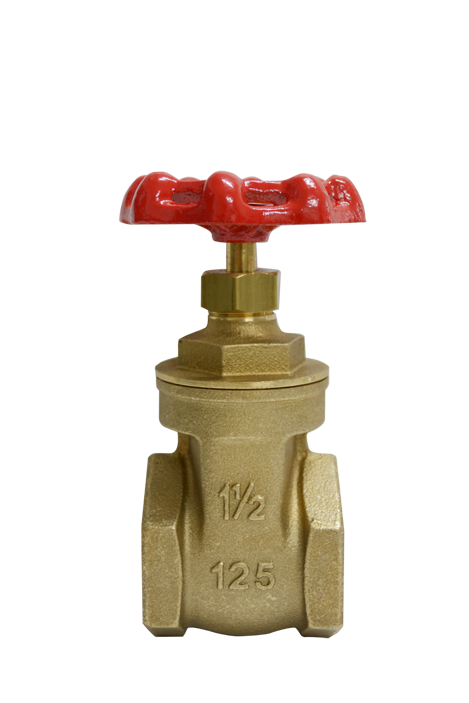

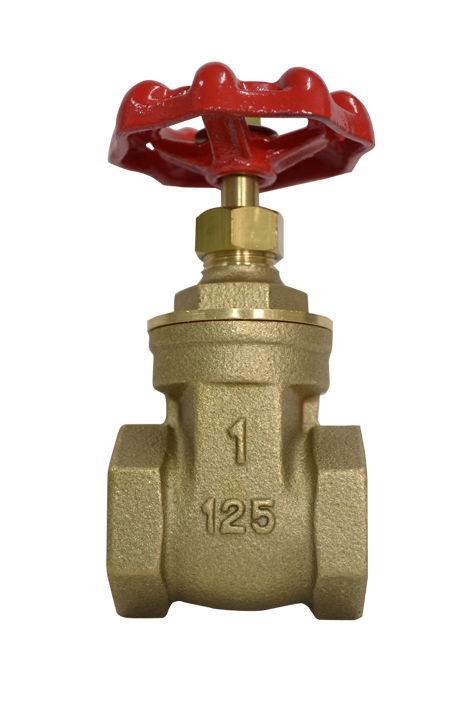

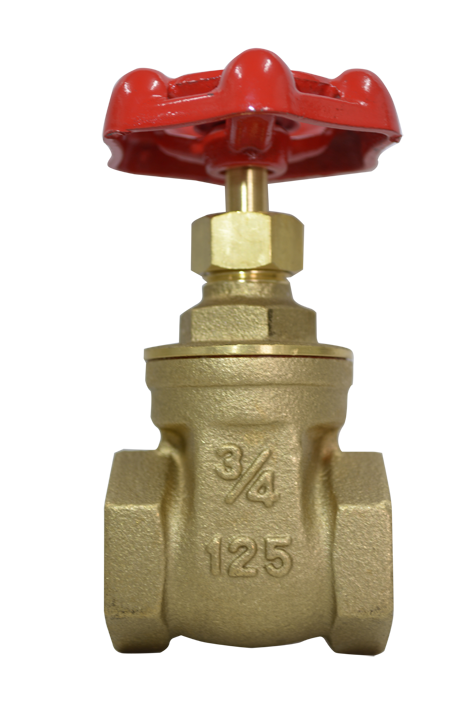

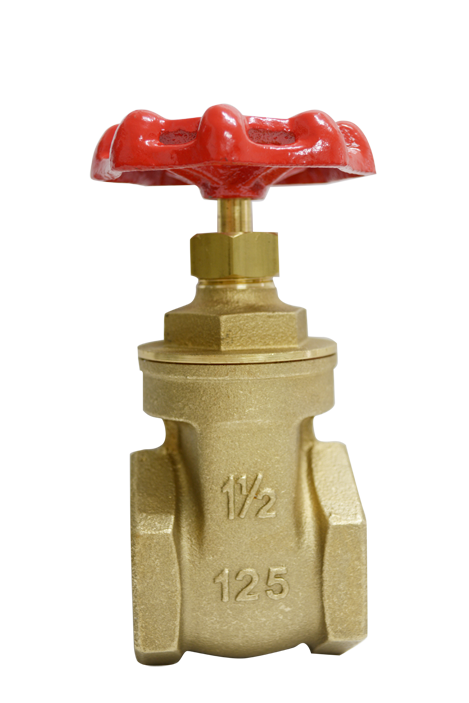

Brass Gate Valve

Brass Gate Valve, TYT-302
Brass Gate Valve
Brass Gate Valve
Brass Gate Valve
Brass Gate Valve
Brass Gate Valve, TYT-302
Brass Gate Valve
Brass Gate Valve
Brass Gate Valve
Brass Gate Valve
Model:TYT-302
Brass
Gate Valve Ips
1/2”~ 4”
Add to inquiry
Introduction

Brass Gate Valve is essential for controlling the flow of liquids, gases and vapours. It is manufactured in Taiwan with the highest quality standards. The valve is designed with a robust and durable brass body and gate to ensure a long service life. It has a corrosion-resistant coating and is available in various sizes and connection types. The threaded connection allows for a secure connection and easy installation. The brass gate valve is suitable for both domestic and commercial applications. It is designed to provide a reliable and efficient performance with minimal maintenance and cost-effectiveness. With its robust design and reliable performance, the brass gate valve is sure to provide years of reliable service. It is a great choice for a wide range of applications.

Specification

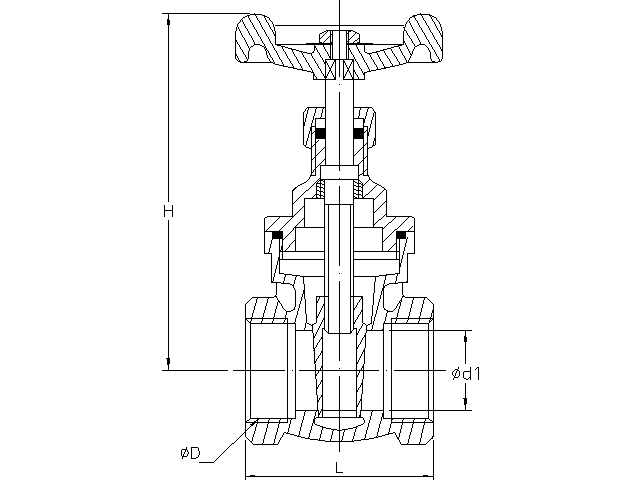

size ØD H L  Ød1
1/2" PT  1/2 73.0 43.5 13.5
3/4" PT  3/4 84.0 48.5 19.5
1" PT    1 95.0 54.5 24.5
11/4" PT 11/4 108.0 59.0 31.5
11/2" PT 11/2 123.0 61.0 36.5
2" PT    2 142.0 70.0 46.5
21/2" PT 21/2 178.0 88.0 61.0
3" PT    3 207.0 97.5 74.0
4" PT    4 248.0 117.5 94.5





PART MATERIAL
BODY CAST BRASS
DISC CAST BRASS
BONNET CAST BRASS
HAND WHEEL ALUMINUM ALLOY
STEM BRASS ROD
