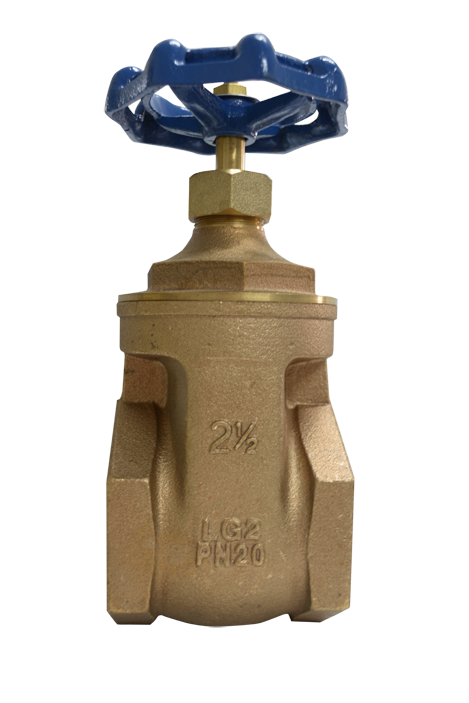

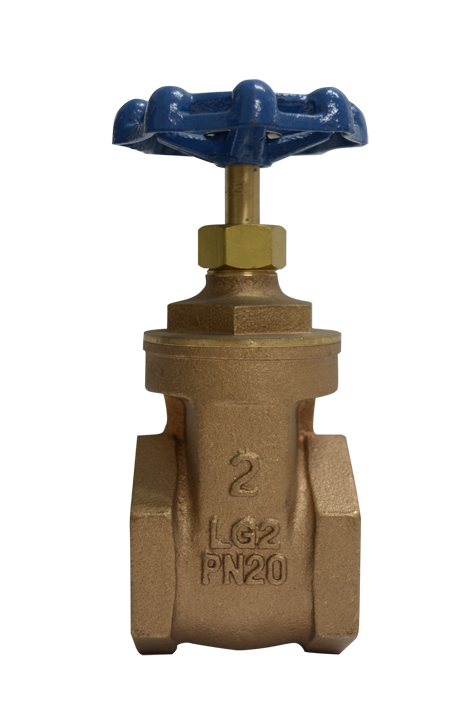

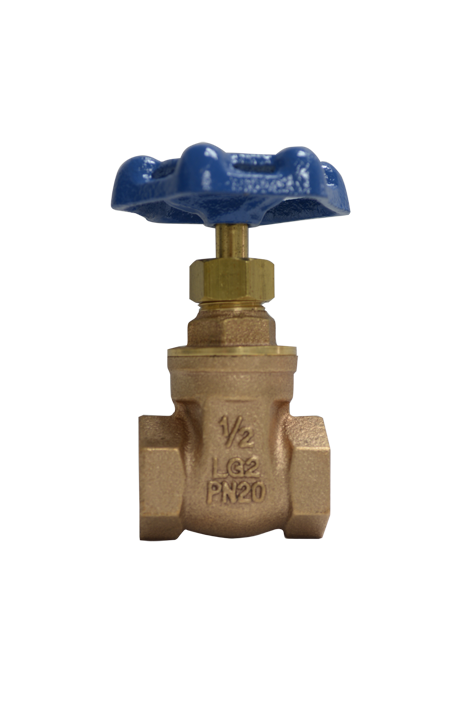

Bronze Gate Valve
Model:TYT-352
Add to inquiry
Introduction
The Brass Gate Valve is a must-have component of any plumbing system. It is made in Taiwan with the highest quality standards and features a strong and durable brass body and gate to ensure a long service life. It is coated with a corrosion-resistant coating and comes in various sizes and connection types. The threaded connection allows for a secure and easy installation. The brass gate valve is suitable for both domestic and commercial applications and is designed to provide reliable and efficient performance with minimal maintenance costs. It is cost-effective and is a great choice for a wide range of applications. With its robust design and reliable performance, the brass gate valve is sure to provide years of reliable service.
Specification
SIZE | ØD | H | L | Ød |
1/2" | G 1/2 | 73.0 | 43.5 | 13.5 |
3/4" | G 3/4 | 84.0 | 49.0 | 19.5 |
1" | G 1 | 95.0 | 54.5 | 24.5 |
11/4" | G 11/4 | 108.0 | 59.0 | 31.5 |
11/2" | G 11/2 | 123.0 | 61.0 | 36.5 |
2" | G 2 | 142.0 | 70.0 | 46.5 |
21/2" | G 21/2 | 178.0 | 89.0 | 61.0 |
3" | G 3 | 207.0 | 101.0 | 74.0 |
4" | G 4 | 248.0 | 118.5 | 94.5 |
PART | MATERIAL |
BODY | CAST BRONZE |
DISC | CAST BRONZE |
BONNET | CAST BRONZE |
HAND WHEEL | ALUMINUM ALLOY |
STEM | BRASS ROD |
